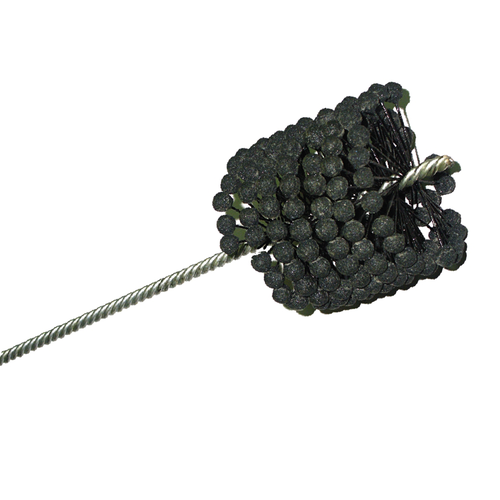

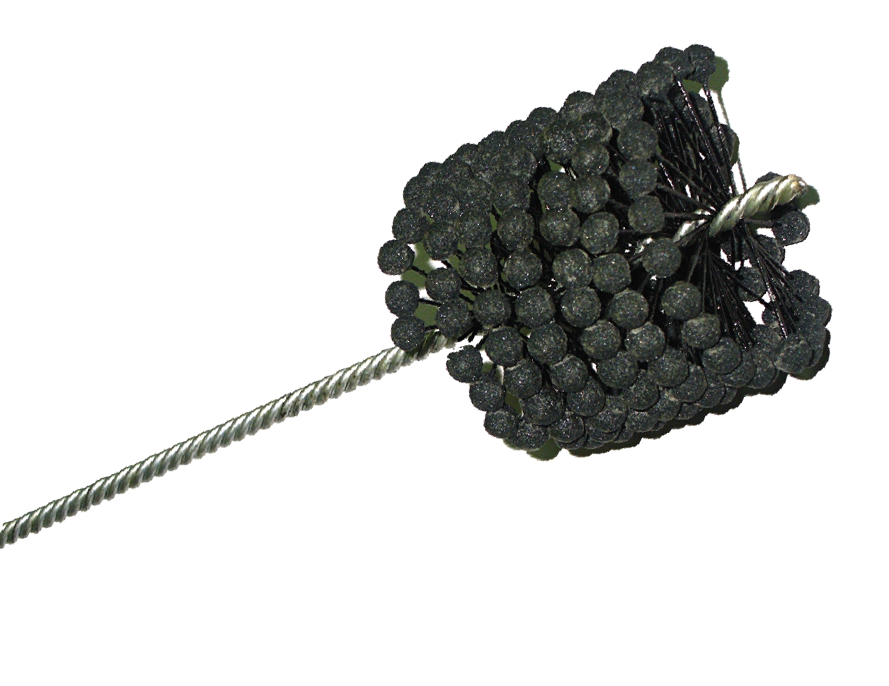

Flexible Ball Cylinder Hone 180 Grit 3.1/4"- 3" (83mm - 76mm) T&E Tools FBH104-1

3.1/4"- 3" Flexible Ball Hone 180 Grit T&E Tools FBH104-1

• FBH104-1 ​Available in 180 Grit Medium & 240 Grit Fine Use with light grade oil only
• Hone and remove glaze from cylinders with flexible stone type abrasive ball ends
• Ball ends create a perfect cross hatch pattern to enable piston rings to bed correctly against cylinder walls
• Available in sizes listed in table.Brush Lengths: 3" (76mm)

•

  Also Available in sizes listed in the table below.

  Brush Lengths: 3" (76mm).

  Material: Boron carbide and silicon carbide

  Cylinder Brush Ball Hones (Medium Grit):

  Item No.	Grit	Size (inches)	Size (mm)
  FBH092-1	180	1.1/4" to 1"	32 to 25mm
  FBH094-1	180	1.1/2" to 1.1/4"	38 to 32mm
  FBH096-1	180	1.3/4" to 1.1/2"	44 to 38mm
  FBH098-1	180	2" to 1.3/4"	50 to 44mm
  FBH100-1	180	2.1/4" to 2"	57 to 50mm
  FBH101-1	180	2.1/2" to 2.1/4"	64 to 57mm
  FBH102-1	180	2.3/4" to 2.1/2"	70 to 64mm
  FBH103-1	180	3" to 2.3/4"	76 to 70mm
  FBH104-1	180	3.1/4" to 3"	83 to 76mm
  FBH105-1	180	3.1/2" to 3.1/4"	89 to 83mm
  FBH106-1	180	3.3/4" to 3.1/2"	95 to 89mm
  FBH107-1	180	4" to 3.3/4"	102 to 95mm
  FBH108-1	180	4.1/4" to 4"	108 to 102mm
  FBH109-1	180	4.1/2" to 4.1/4"	114 to 108mm
  FBH110-1	180	5" to 4.1/2"	127 to 114mm

  Cylinder Brush Ball Hones (Fine Grit):

  Item No.	Grit	Size (inches)	Size (mm)
  FBH092-2	240	1.1/4" to 1"	32 to 25mm
  FBH094-2	240	1.1/2" to 1.1/4"	38 to 32mm
  FBH096-2	240	1.3/4" to 1.1/2"	44 to 38mm
  FBH098-2	240	2" to 1.3/4"	50 to 44mm
  FBH100-2	240	2.1/4" to 2"	57 to 50mm
  FBH101-2	240	2.1/2" to 2.1/4"	64 to 57mm
  FBH102-2	240	2.3/4" to 2.1/2"	70 to 64mm
  FBH103-2	240	3" to 2.3/4"	76 to 70mm
  FBH104-2	240	3.1/4" to 3"	83 to 76mm
  FBH105-2	240	3.1/2" to 3.1/4"	89 to 83mm
  FBH106-2	240	3.3/4" to 3.1/2"	95 to 89mm
  FBH107-2	240	4" to 3.3/4"	102 to 95mm
  FBH108-2	240	4.1/4" to 4"	108 to 102mm
  FBH109-2	240	4.1/2" to 4.1/4"	114 to 108mm
  FBH110-2	240	5" to 4.1/2"	127 to 114mm
