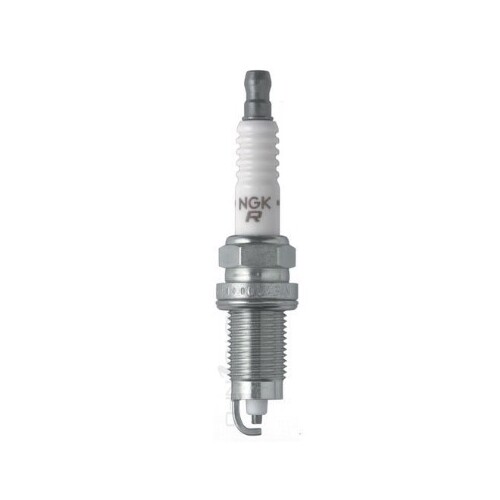

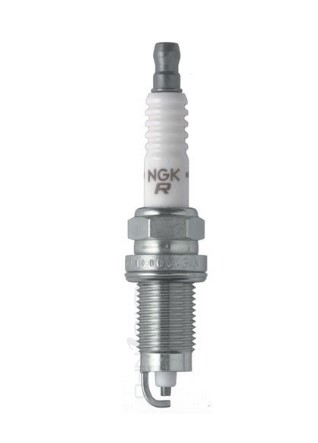

Resistor V-Groove Spark Plug 7252 NGK FR5-1

Resistor V-Groove Spark Plug  7252 NGK FR5-1

NGK V-Power plugs feature a unique v-cut in the center electrode that directs the spark to the edge of the electrode, helping the spark develop more rapidly, increasing ignitability and reducing quenching.

• Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
• Corrugated ribs prevent flashover
• Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
• Copper core aids in heat removal
• Triple seals prevent leakage

• Shell
• Thread Diameter14mm
• Thread Pitch1.25mm
• Seat TypeGasket
• Reach19mm (3/4")
• Hex Size5/8" (16mm)
• Terminal TypeSolid
• Overall HeightISO
• Gap.039" (1.0mm)

• Center Electrode
• MaterialNickel
• TypeV-Cut
• Size2.5mm
• ProjectionExtended Projection

• Ground Electrode
• MaterialNickel
• TypeStandard
• Quantity1

• Specifications
• ResistorYes
• Resistor Value5k Ohm
• Heat Range5
• Features3.0mm Extended Metal Shell
• Torque SpecsCast Iron: 18-25.3 lb. ft. Aluminum: 18-21.6 lb. ft.

• Part Information
• BrandNGK/NTK
• Warranty60 Days
• Longevity30k Miles
